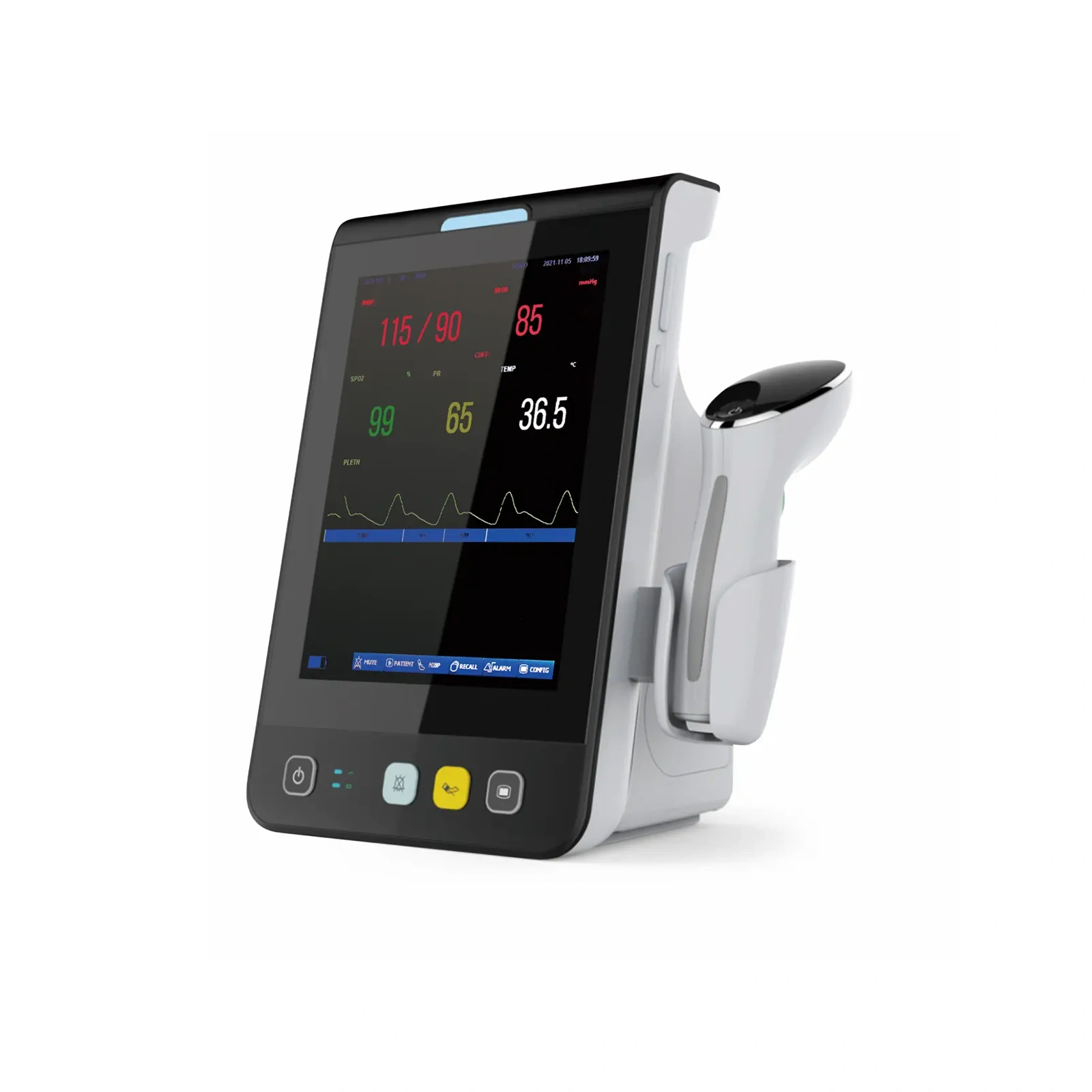

E10 Multi-Parameter Patient Monitor
Multi-Parameter Patient Monitor
- 8-inch color TFT LCD for clear, at-a-glance bedside viewing.
- Monitors NIBP, SpO2 and pulse rate, with an optional skin-temperature module.
- Approximately 5 hours of battery operation and storage for up to 1,000 data sets.
- Supports adult, pediatric and neonatal workflows with flexible wired and wireless connectivity.
Compact Multi-Parameter Monitoring for Flexible Clinical Workflows

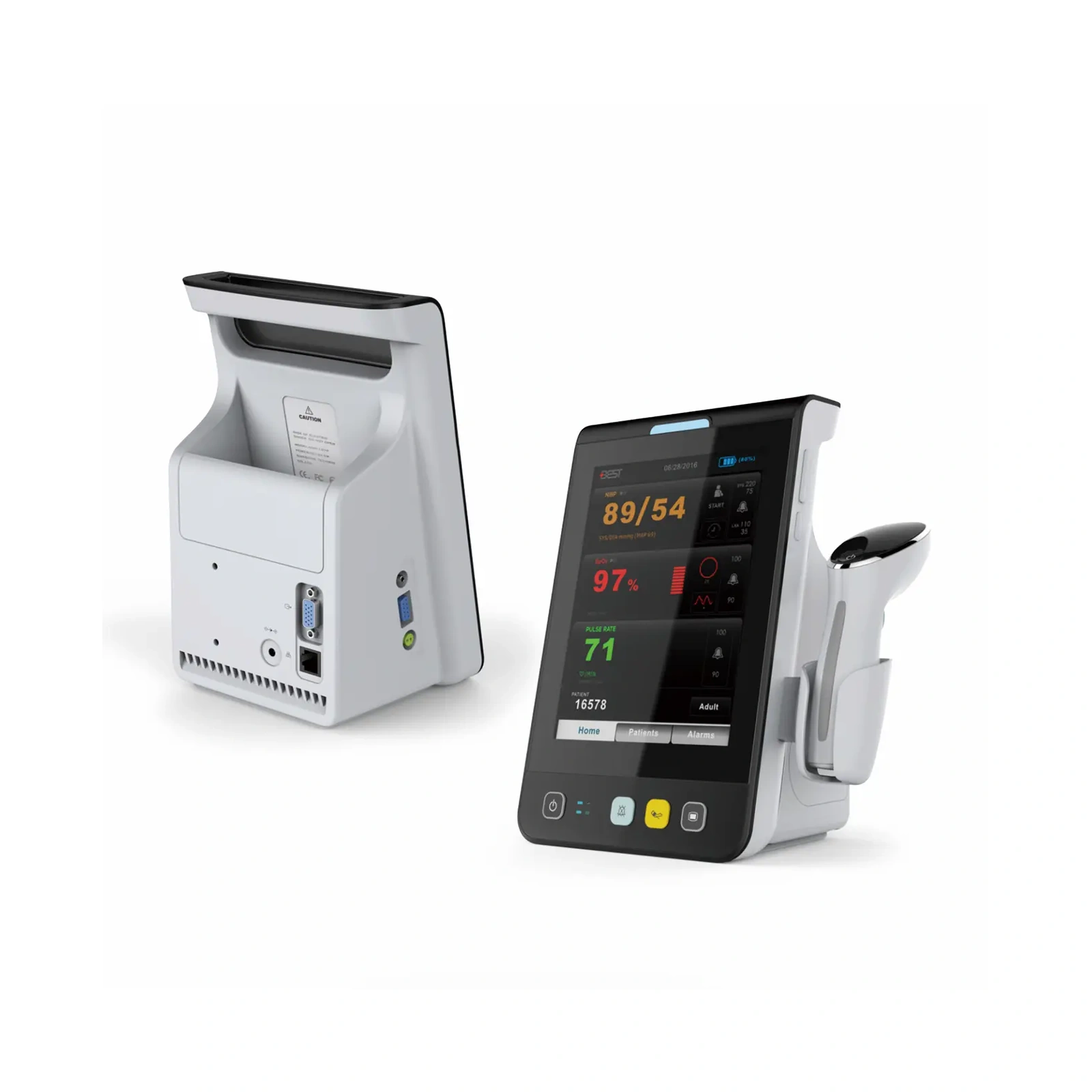

The Yonker E10 is an 8-inch multi-parameter patient monitor designed for adult, pediatric and neonatal measurement. It combines NIBP, SpO2 and pulse-rate monitoring with an optional skin-temperature module in a compact, portable housing.
A flat front panel, one-piece rear housing, built-in rechargeable battery, three-level audible and visual alarms, and flexible trolley, wall-mount or swing-arm installation options support use across a range of hospital and care settings.
Key Features
Clear 8-Inch Display

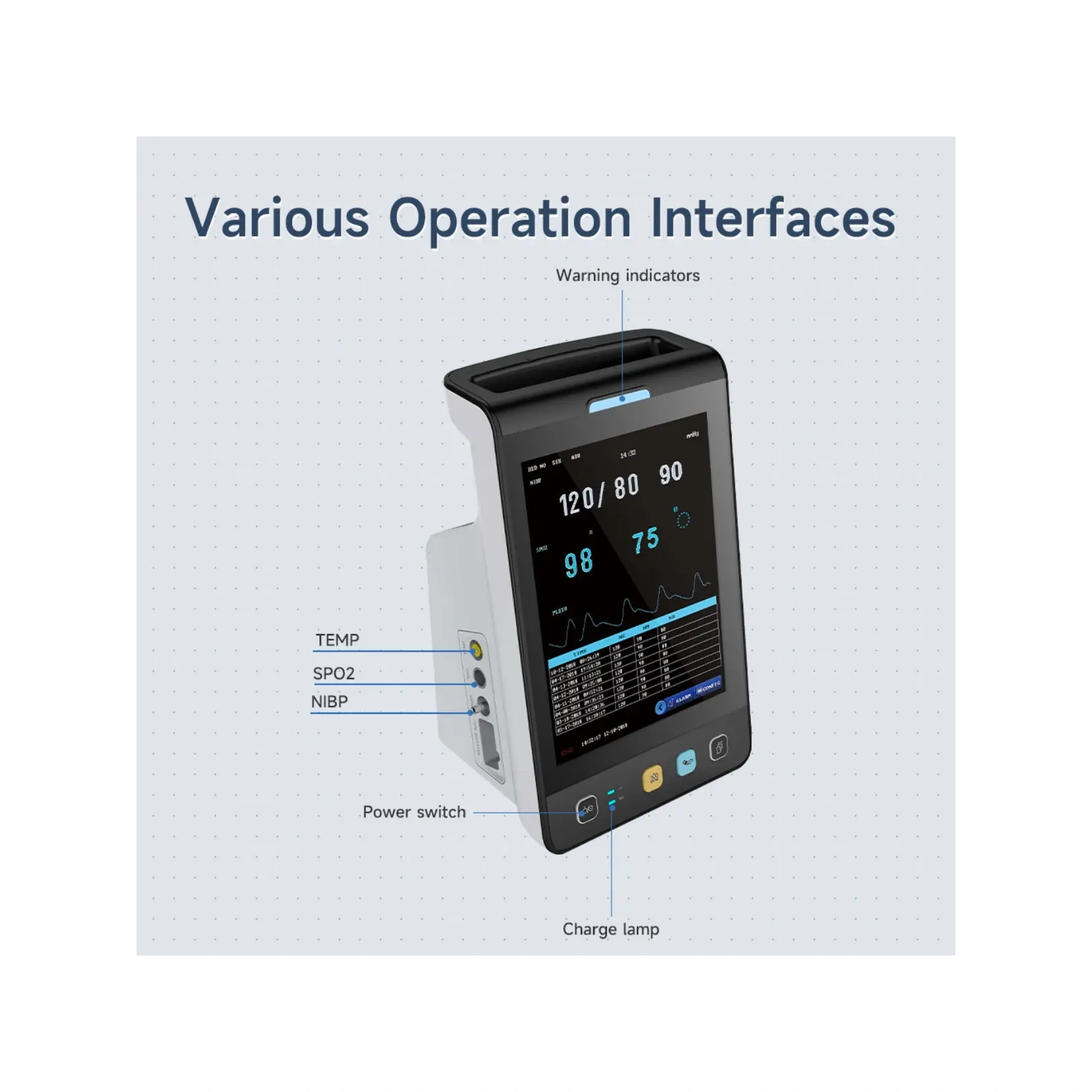

The color TFT LCD presents core measurements clearly, with rotary-knob and button operation and an optional touchscreen.
Multi-Parameter Measurement
Supports NIBP, SpO2 and pulse-rate monitoring for adult, pediatric and neonatal patients, with optional skin-temperature measurement.
Portable and Flexible
A one-piece rear housing, built-in rechargeable battery and multiple mounting options support bedside, trolley, wall-mount and swing-arm workflows.
Hospital Connectivity

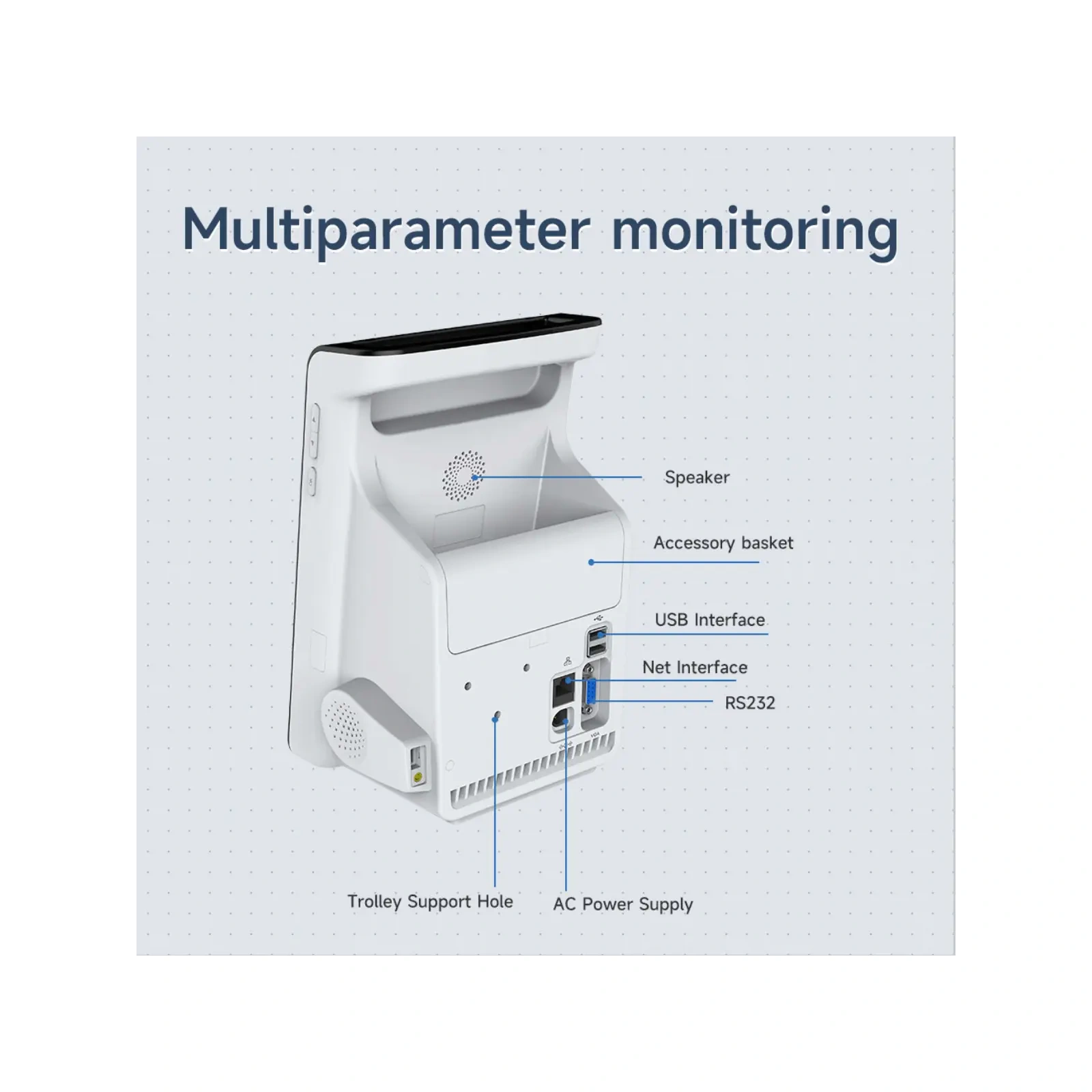

Supports wired and wireless connections, Bluetooth BLE 4.0 for hospital CMS integration, and a reserved Wi-Fi interface for nurse-station integration.
Efficient Data and Alarm Management
Stores up to 1,000 data sets and provides three-level audible and visual alarms for timely clinical attention.
Technical Specifications
| Product Type | Multi-Parameter Patient Monitor |
| Display | 8-inch color TFT LCD |
| Controls | Rotary knob and buttons; optional touchscreen |
| Supported Patient Groups | Adult, pediatric and neonatal |
| Core Measurements | NIBP, SpO2 and pulse rate; optional skin-temperature module |
| Data Storage | Up to 1,000 data sets |
| Battery | Built-in rechargeable 2000 mAh, 7.4 V lithium battery |
| Battery Operating Time | Approximately 5 hours of continuous operation |
| NIBP Method | Oscillometric |
| NIBP Automatic-Mode Interval | 1–480 minutes |
| NIBP Adult Systolic Pressure | 40–270 mmHg |
| NIBP Adult Diastolic Pressure | 10–210 mmHg |
| NIBP Mean Pressure | 20–230 mmHg |
| NIBP Static Pressure Range | 0–300 mmHg |
| NIBP Static Pressure Accuracy | ±3 mmHg |
| NIBP Adult Overpressure Protection | 300 mmHg |
| SpO2 Measurement Range | 0–100%; resolution 1% |
| SpO2 Accuracy | Adult / pediatric: ±2% from 70% to 100%; neonatal: ±3% from 70% to 100% |
| Pulse Rate | 30–240 bpm; resolution 1 bpm; accuracy ±3 bpm |
| Optional Temperature Range | 0–50 °C; resolution 0.1 °C |
| Operating Environment | +5 °C to +40 °C; 15%–80% RH; 86.0–106.0 kPa |

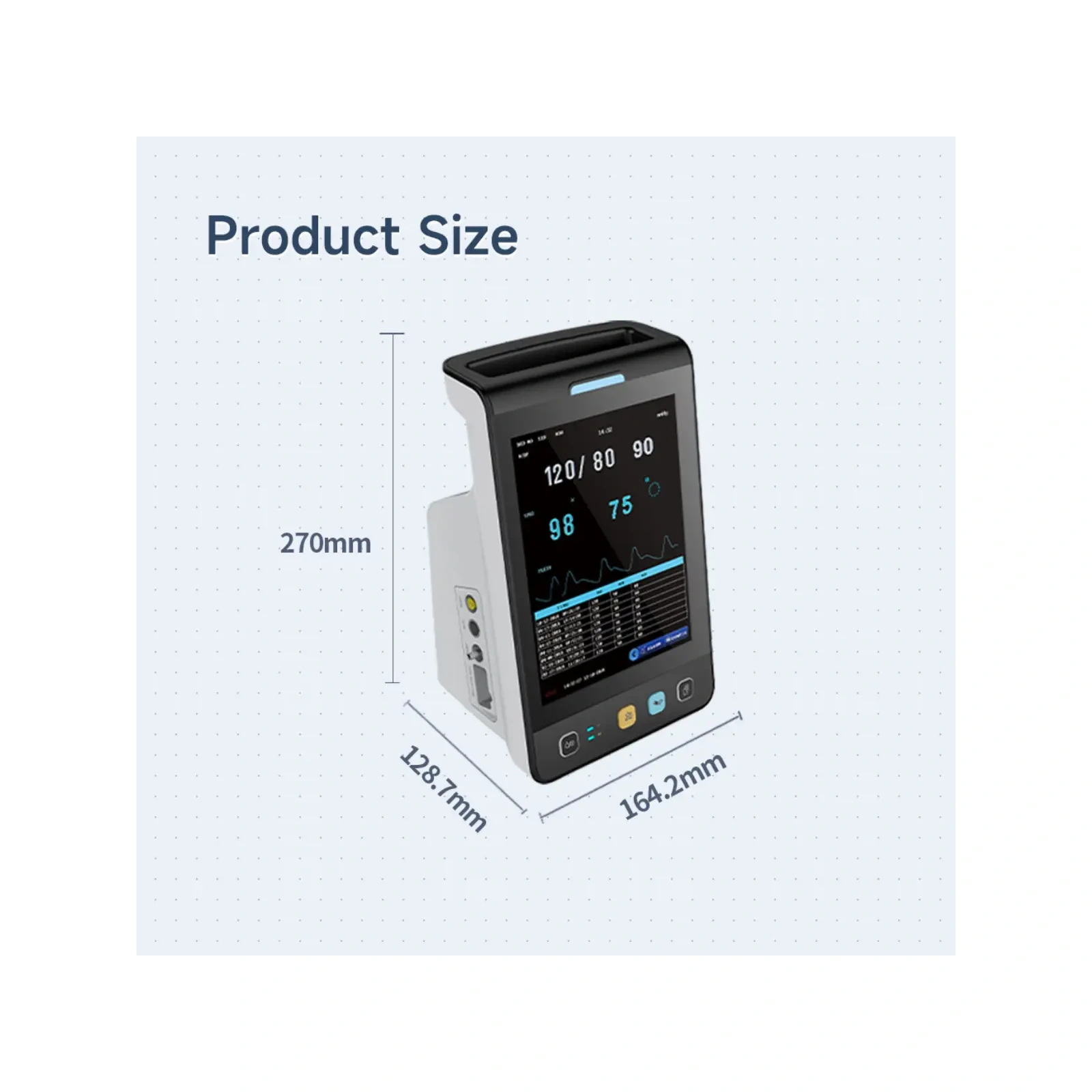

| Product Size | 164.2 × 128.7 × 270 mm |
| Mounting Options | Trolley, wall mount or swing arm |
Applications
- Bedside multi-parameter monitoring in hospital wards
- Adult, pediatric and neonatal monitoring workflows
- Hospital CMS and nurse-station connectivity workflows
- Trolley-mounted, wall-mounted or swing-arm installations
- Ambulance, community medical and veterinary-care environments
Downloads
Product documentation is available on request. Please contact Yonker for the latest E10 specification sheet and support materials.
